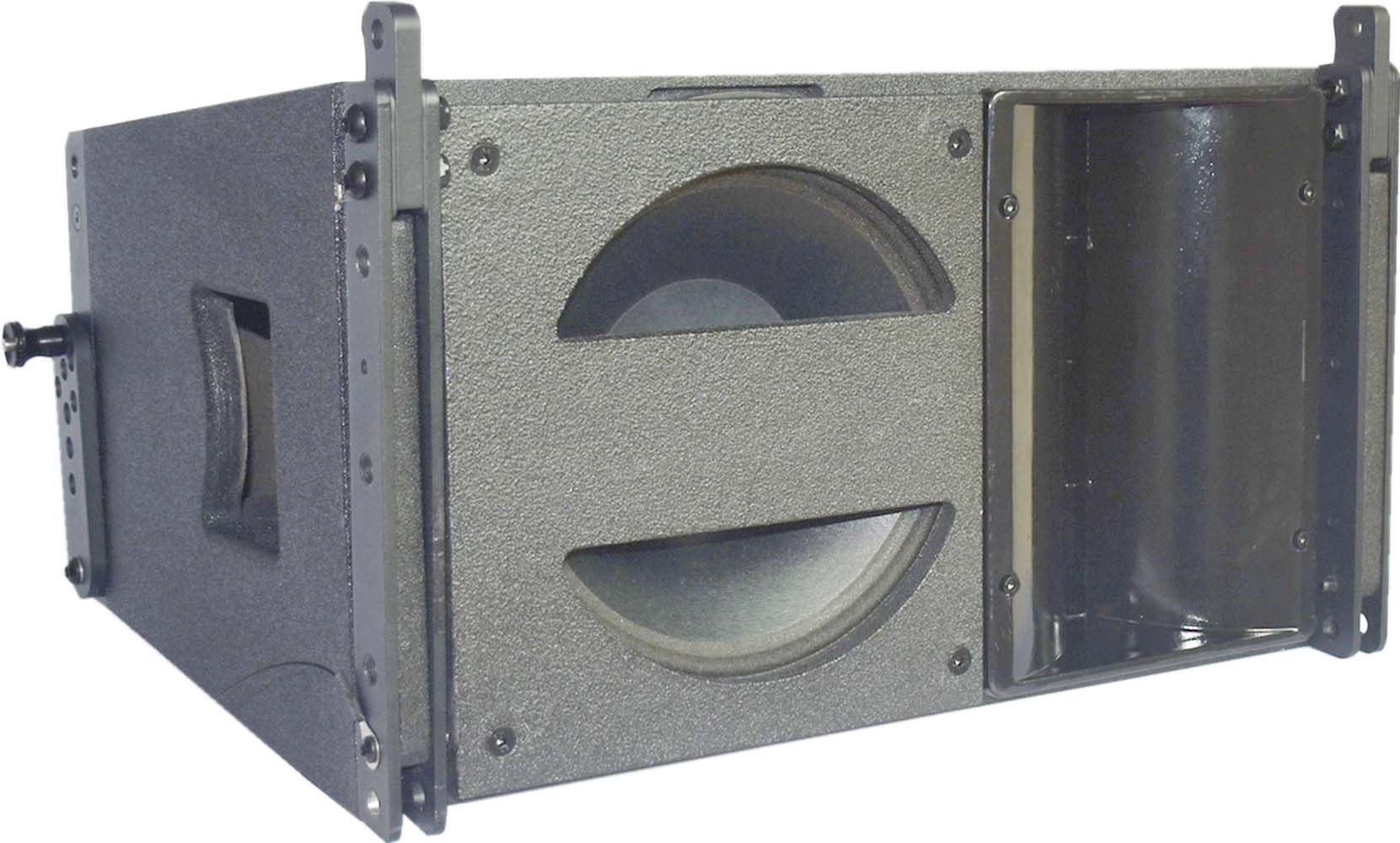

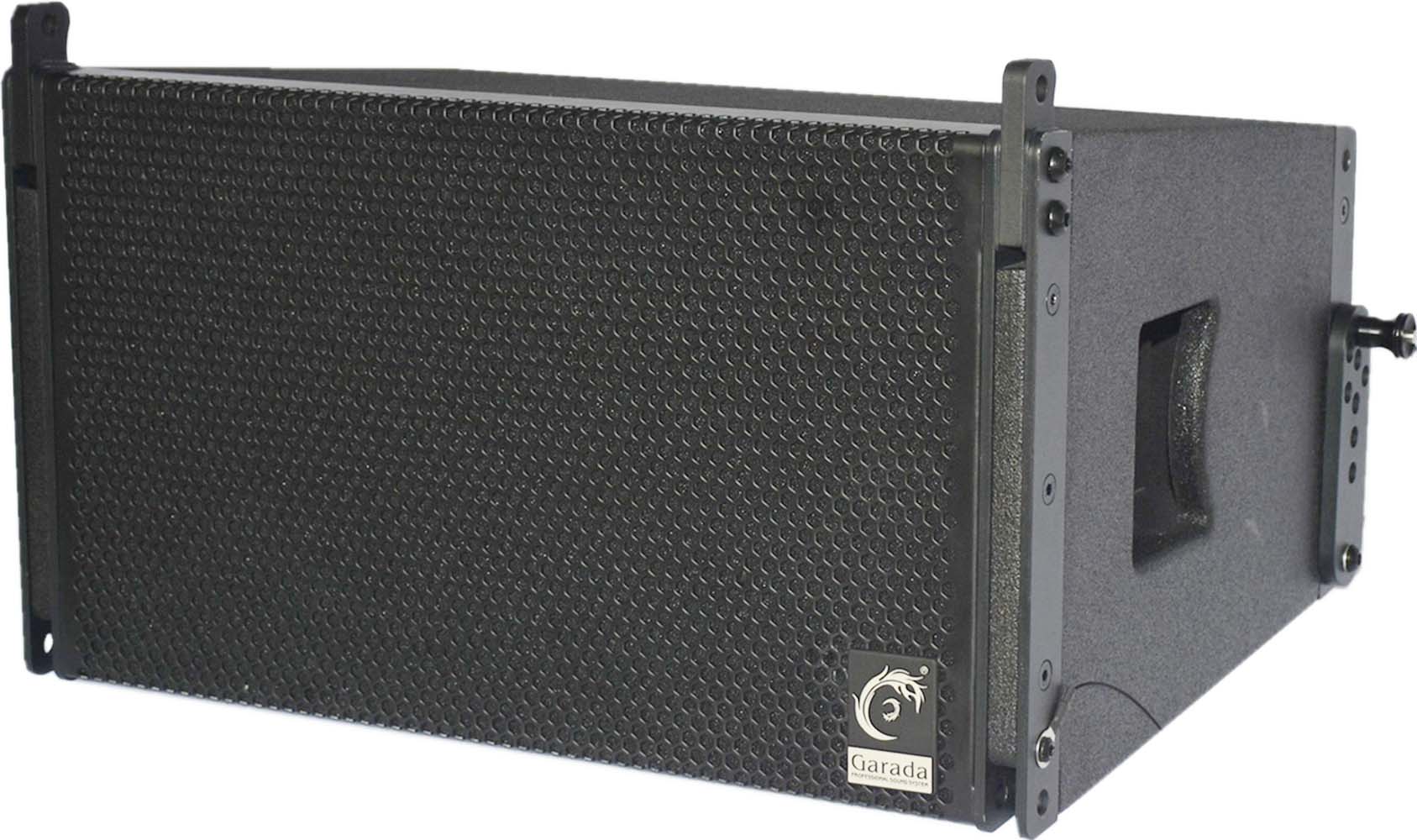

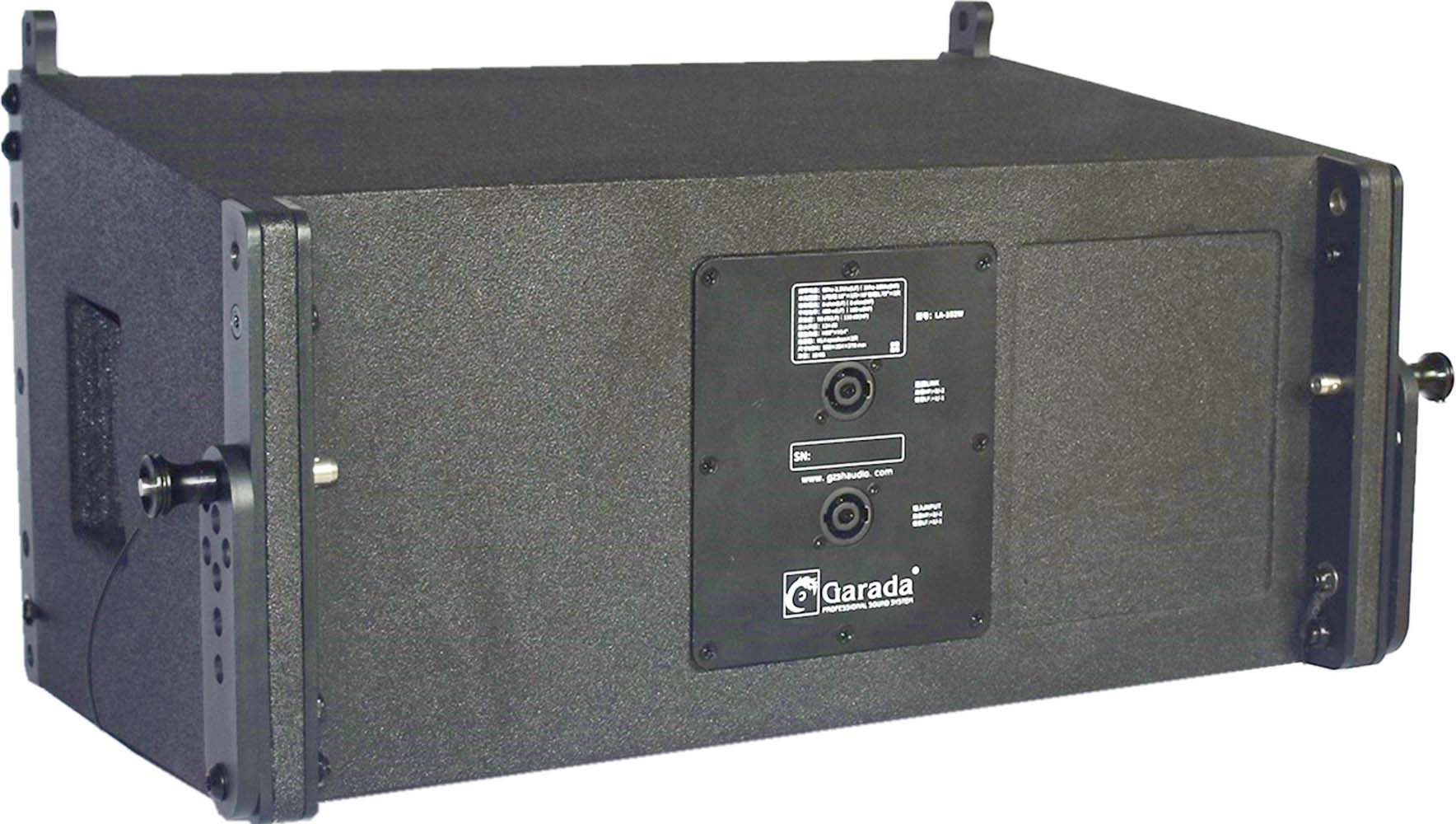

单10寸外置分频3单元400W/8欧线阵列系统音箱
系统指标：
频率响应（±4dB）：60hz-2.5khz(LF)｜1khz-18khz(HF)
覆盖角度（-6dB）：H90°×V14°；
系统灵敏度：98 dB(LF)｜110 dB(HF)，1w@1m；
最大声压：124 dB，@1m，f>80Hz
系统标称阻抗：8 Ohm；
系统额定功率（RMS）：400W（LF)|160W(HF)；
系统额定功率（PROGRAM）：800W（LF)|320W(HF)；

换能器单元：
低频：1只×10寸（布边，钕磁138磁75芯）单元；
高频：2只×1.73寸（钕磁85磁44芯）音圈号角负载；

物理特性：
箱体结构：梯形，高强度桦木夹板；
安装方式 ：配套完善的吊装及角度调整装置，
箱体颜色工艺：黑色,金钢沙漆+黑铁网；
连接器：NL4×2只；  重量：19KG；
尺寸（WHD）：500×278×354（mm）；
